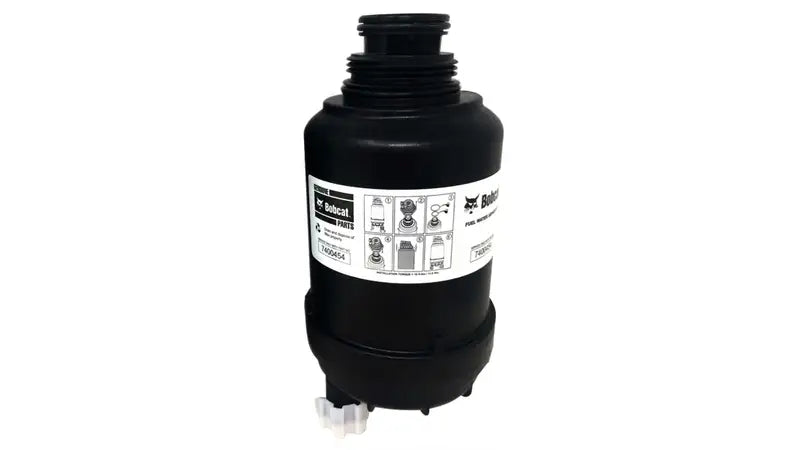

FUEL FILTER WITH WATER SEPERATOR, 7400454

BOBCAT 7400454 - FUEL FILTER WITH WATER SEPERATOR

Previous part number was 7023589 . This part is the direct replacement.

• Greater dust and contaminate capturing capacity at 4 micron at 99.8%
• Removal of 99.8% of the water from the fuel, exceeding engineering specifications
• More pleats
• Stronger, tear resistant media
• Built tough - more robust against media and canister failure
• Fuel filter water separator with a draining valve
• Improved protection for iT4/T4 engines
• Two worm drive clamps may be needed for installation (order separately) 42H72
• Maintenance Interval: 500 hours
• Bobcat recommends having a spare fuel filter for cold weather protection*

For first time use, some machines will need a new mounting bracket to accommodate the larger filter:

*With Tier 4 Engines, the process to remove sulfur raises the cloud point (CP)  - the temperature where wax begins to drop out of fuel - which can contribute to fuel filter plugging. Because of this, it is good practice to have a spare fuel filter in cold weather.

Due to engineering standards, some parts are updated or changed and are assigned a new part number. Previous part number was 7023589. This part is the direct replacement.

Compatible Models:

All-Wheel Steer Loaders:  A770

Excavators: E32, E35, E42, E45, E50, E55, E85

Loaders:  S450, S510, S530, S550, S570, S590, S595, S630, S650, S740, S750, S770, S850

Track Loaders:   T450, T550, T590, T595, T630, T650, T740, T750, T770, T870

Versahandlers: V519, V723

Work Machines: 5600, 5610

Please use the serial number to verify the correct part. You can use the “How to Video” page or contact us at 715-678-2271
