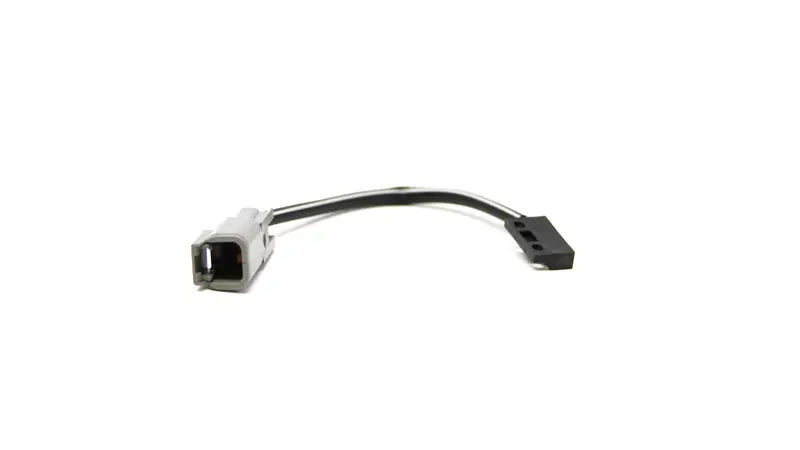

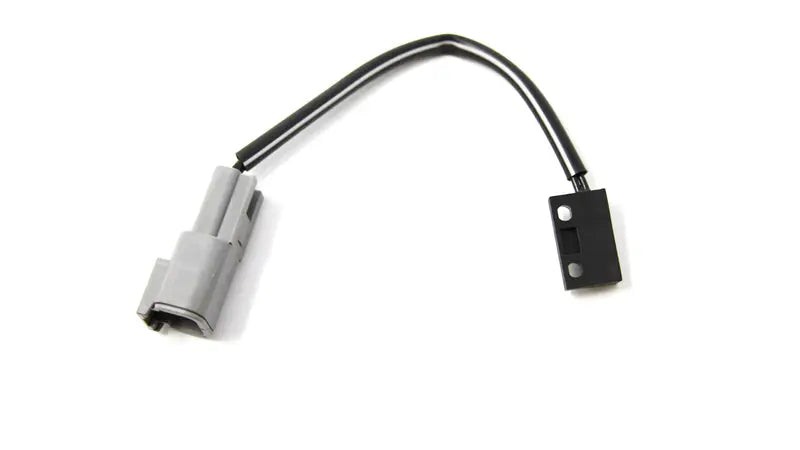

DOOR SENSOR, 6728459

BOBCAT 6728459 - DOOR SENSOR

Ensure your skid steer loader door is latched properly with door sensor wiring for the door latch. The sensor deactivates the lift and tilt valves when the door is open. Also order two rivets (6677193). Connects to the door harness and the door latch. To check for correct operation, open the door. The lift and tilt valve light will flash, an audible tone will sound, and the message DOOR will appear in the display. Close the door, and the lift and tilt valve light will go out and the display will return to machine hours.

Note: If you have a forestry door, you will require a different door sensor.

Compatible Models:

All-Wheel Steer Loaders: A220, A300, A770

Skid Steer Loaders: 751, 753, 763, 773 , 863, 864, 873, 883, 963, S100, S130, S150, S160, S175, S185, S205, S220, S250, S300, S330, S450, S510, S530, S550, S570, S590, S595, S630, S650, S740, S750, S770, S850

Track Loaders: 864, T110, T140, T180, T190, T200, T250, T300, T320, T450, T550, T590, T595, T630, T650, T740, T750, T770, T870

Attachment: Rebar Bender

Please use the serial number to verify the correct part. You can use the “How to Video” page or contact us at 715-678-2271
